PaveDrain System Passes ASTM C1781/C1781M-13


PaveDrain System Passes ASTM C1701/C1701M-09


Based on the test results, it is our opinion that the infiltration rate of the PaveDrain System is a minimum of 4,000 inches per hour.

Inside Diameter of Infiltration Ring (in) – 12.512.5
Elapsed Time of Test (sec) – 7.37.8
Infiltration Rate (in/hr) (l=KM/(D2*t)) – 4449.14163.9

Average Infiltration Rate (in/hr) – 4306.5

View the entire report here


Infiltration Report

American Excelsior Company's ErosionLab® was contracted by ECS Solutions, LLC to help better understand the infiltration capabilities of the PaveDrain porous paver technology.

The outdoor testing for the study was conducted during August 2010 at ErosionLab. The PaveDrain blocks were installed over two plots that contained different underlying materials. The plots were exposed to increasing simulated rainfall events with one hour durations until runoff was measured from the plot.

View the official ErosionLab® report


AEC Logo.png

Pollutant Removal

Porous Pavement BMP's score at or NEAR the top in virtually every major category.

Infiltration systems can be considered 100 percent effective at removing pollutants in the fraction of water that is infiltrated, since the pollutants found in this volume are not discharged directly to surface waters. Quantifying the removal efficiency of infiltration systems, therefore can best be determined by calculating the percent of the average annual runoff volume that is infiltrated, and assuming 100 percent removal of pollutants found in that runoff volume.

View the EPA report

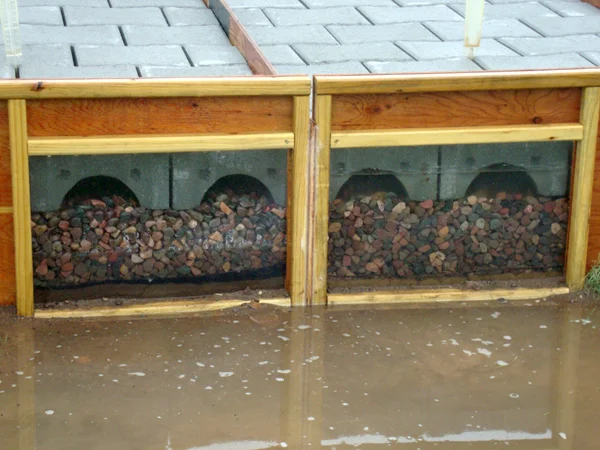

PaveDrain paver system storage capacity, minutes following 6 inch event
